Routing Employee Salary Data

Routing Employee Salary Data

  1. Create a Router transformation and name it RTR_Salary. Then click
    Done
    .
  2. In the Expression transformation, select the following columns and drag them to RTR_Salary:
    • EmpID
    • DeptID
    • LastName
    • FirstName
    • TotalSalary
    The Designer creates an input group and adds the columns you drag from the Expression transformation.
  3. Open the RTR_Salary Router transformation and select the
    Groups
     tab.
    The
    Edit Transformations
     dialog box appears, with RTR_SALARY listed in the Select Transformation field.

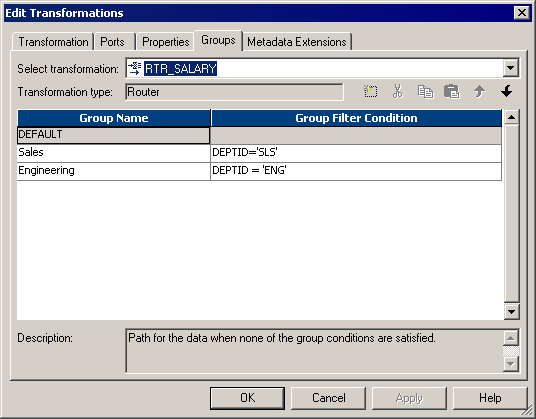

    The following image shows the
    Groups
     tab in the
    Edit Transformations
     dialog box:
    ""
  4. On the
    Groups
     tab, add two groups.
    Change the group names and set the filter conditions.
    The following table describes the groups names and the filter conditions:
    Group Name
    Filter Condition
    Sales
    DEPTID = ‘SLS’
    Engineering
    DEPTID = ‘ENG’
    The Designer adds a default group to the list of groups. All rows that do not meet the condition you specify in the group filter condition are routed to the default group. If you do not connect the default group, the Integration Service drops the rows.
  5. Click
    OK
     to close the transformation.
  6. In the workspace, expand the RTR_Salary Router transformation to see all groups and ports.
  7. Click
    Repository
    Save
    .
Next, you create another Router transformation to filter the Sales and Engineering department data from the DEPARTMENT relational source.
